บริษัทขายเครื่องพับโลหะแผ่น (Hydraulic press brake)
เครื่องพับเหล็กไฮดรอลิค พับโลหะแผ่น (Press brake machine) จำหน่ายทั้งระบบ NC และ CNC เหมาะสำหรับงานพับโลหะชนิดต่างๆ พับได้หลายรูปแบบ โครงสร้างมีความแข็งแรง มีความแม่นยำสูง ใช้งานง่าย เรามีบริการติตตั้งพร้อมเทรนการใช้งานและดูแลตลอดอายุการใช้งาน สามรถให้คำปรึกษา แนะนำโดยวิศวกรผู้เชี่ยวชาญ

เครื่องพับโลหะแผ่น Jaimac มีหลายรุ่นหลายขนาดให้เลือกใช้ตามความเหมาะสม
เหมาะกับงานผลิตทั้งขนาดย่อม ขนาดกลาง และขนาดใหญ่ พร้อมทีมงานติดตั้งและเทรนนิ่งตลอดการใช้งาน บริการไวอะไหล่ครบ รับประกัน 1 ปีเต็ม จัดส่งเครื่องพับเหล็ก CNC พร้อมติดตั้ง+เทรนวิธีใช้งานและการบำรุงรักษา ได้เต็มๆ

- Main Features:
- The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical compensation device, to achieve precision bending.
- Hydraulic synchronous control and Estun NC programmable logic controller ensure accurate repeatability and ease use.
- Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way.
- X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control.
- Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation.
- The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.
- WC67K standard single-axis back gauge system and single-axis bending angle system, you can choose to add the V-axis compensation function, and select the appropriate mold to bend complex shape workpieces easily.
- Main Configuration:
- Estun E21 NC control system
- Y-axis and X-axis system control adjustment
- Delta frequency converter controls the positioning of X axis and Y axis
- Using HIWIN ball screw and light bar to ensure the accuracy of 0.05mm.
- Front holder support
- Germany Bosch Rexroth hydraulic valve block
- Germany EMB oil tube connector
- Germany Siemens main motor
- France Schneider Electric
- Hydraulic and electrical overload protection
- Top and bottom dies (86 °, R0.6mm, material: 42CrMo)
- Safety Standard:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
- Front finger protection (safety light curtain)
- South Korea KACON foot switch (Safety grade 4)
- Rear metal safety guard and CE standard
- Safety relay monitors foot switch, safety protection
- Safety standards (2006/42 / EC):
- Estun E21 NC Control System:
- Backgauge control
- Control the common motor or inverter
- Intelligent positioning
- Holding pressure unloading time setting
- Workpiece counting
- 40 programs stored, 25 steps per program
- Unilateral positioning
- Concession function
- One-key backup / restore
- mm / inch
- Chinese / English

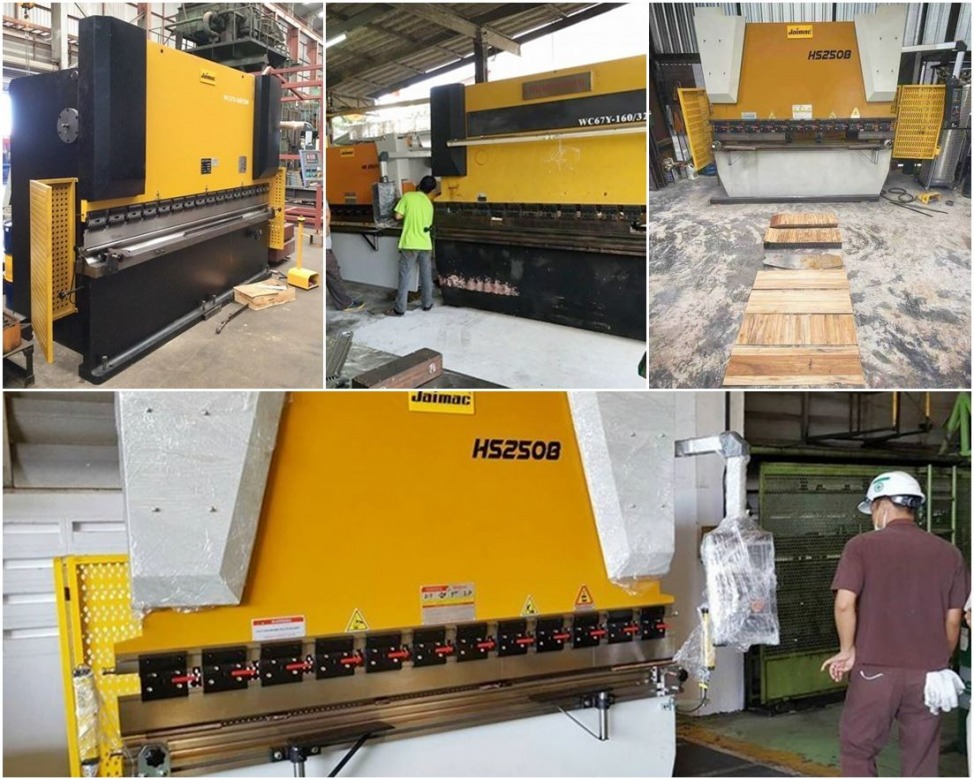

JAIMAC PRRESS BRAKE MACHINE REFERENCE
เครื่องพับไจแมค ส่งตรงยังธุรกิจขนาดย่อม ขนาดกลางและขนาดใหญ่พร้อมดูแลตลอดอายุการใช้งาน


ต้องการสอบถามข้อมูลเพิ่มเติมเกี่ยวกับเครื่องพับโลหะแผ่น Hydraulic Press Brake
ติดต่อ : 065-510-9898
